Brand Name : ZHONGYI
Model Number : HQ236
Place of Origin : China
MOQ : 100pcs
Price : $0.1~$1 >100pcs
Payment Terms : T/T
Supply Ability : 10000pcs/week
Delivery Time : 1-3 work days
Packaging Details : carton box
Pitch : 3.81mm/5.0mm
Poles : from 1P
Wire guard : Phosphor bronze.Ni plated
Pin header : Brass. Tin plated
Housing : PA66.UL94V-0

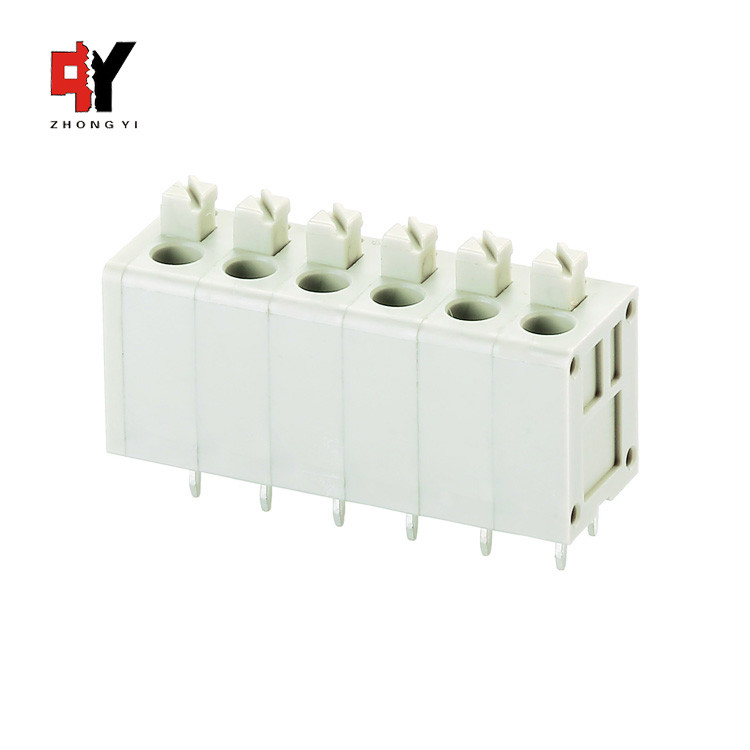

HQ236-3.81mm 5.0mm pcb transformer tb terminal block spring type connector
Electrical
| Rated voltage | 300V |
| Rated current | 10A |
| Withstanding voltage | AC1500/1Min |
| Wire range | 20-16AWG |
Mechanical
| Temp range | -40℃~+105℃ |
| Max soldering | +250℃ 5 Sec |
| Strip length | 8~9mm |
Spring terminal blocks, the connection mode is divided into cage type spring and butterfly type spring connection, can be substituted with screw PCB terminal, increase the flexibility.

|   |

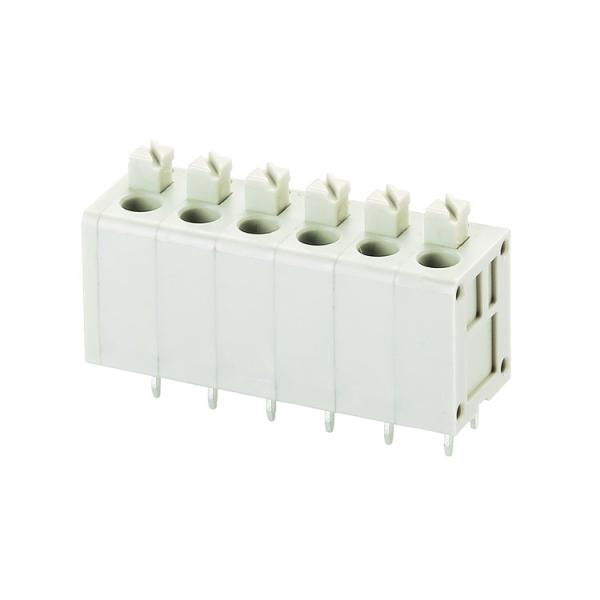

| HQ236-3.81mm 5.0mm Pc Board Terminal Blocks Spring Wire Type Images |
